Notice!

Please pay attention to electricity safety to prevent electric shock, please disconnect the main power supply of the air conditioner before wiring!

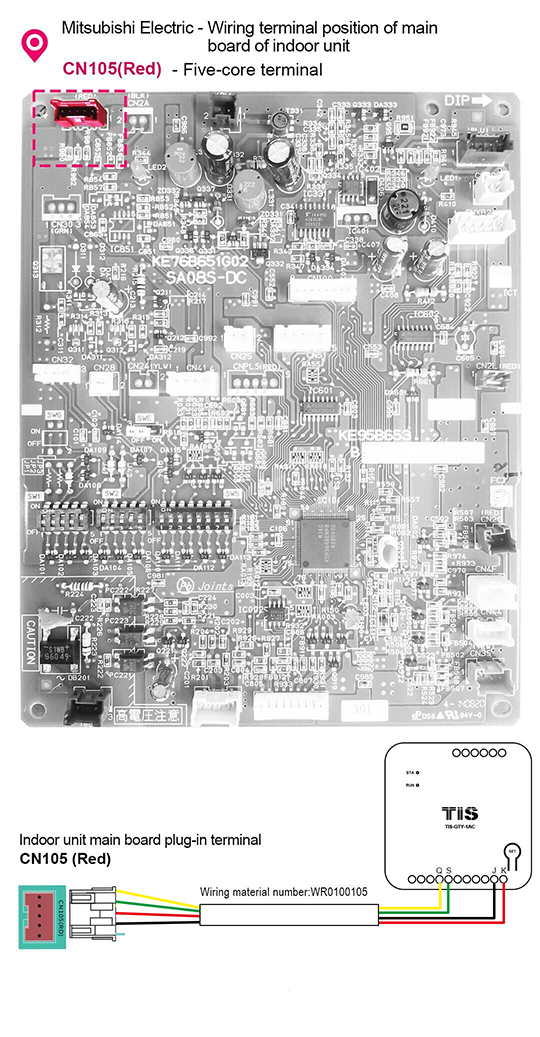

TIS-GTY-1AC installation location and wiring requirements

Precautions

※The installation position of TIS-GTY-1AC is determined by the actual scene, optional ① or ②

※When connecting to a third-party panel, wiring B needs to be purchased separately (the standard length is 15cm, please continue the wiring according to the actual distance)

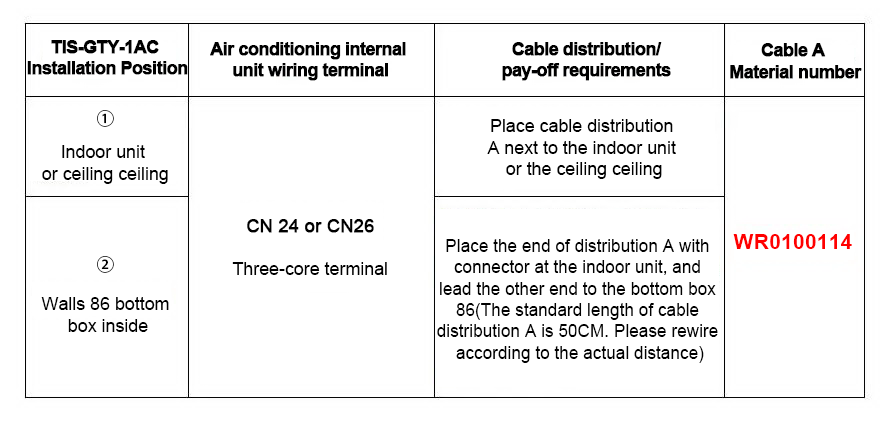

※Wiring A and B are optional accessories, please contact us to purchase according to the material number in the table

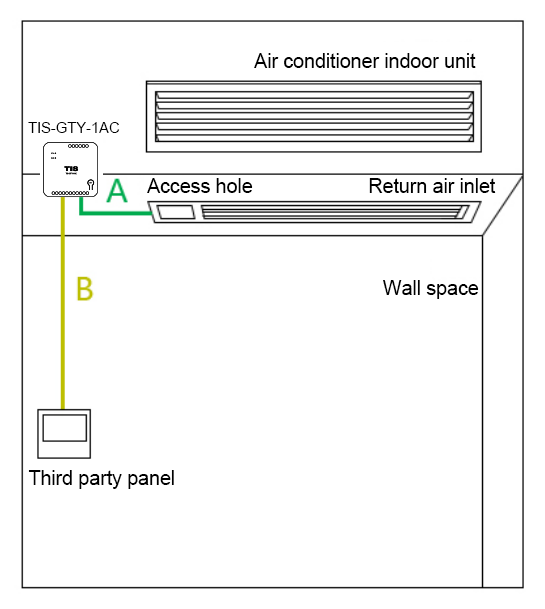

Option One

TIS-GTY-1AC is installed next to the indoor unit or at the ceiling

(Wiring diagram)

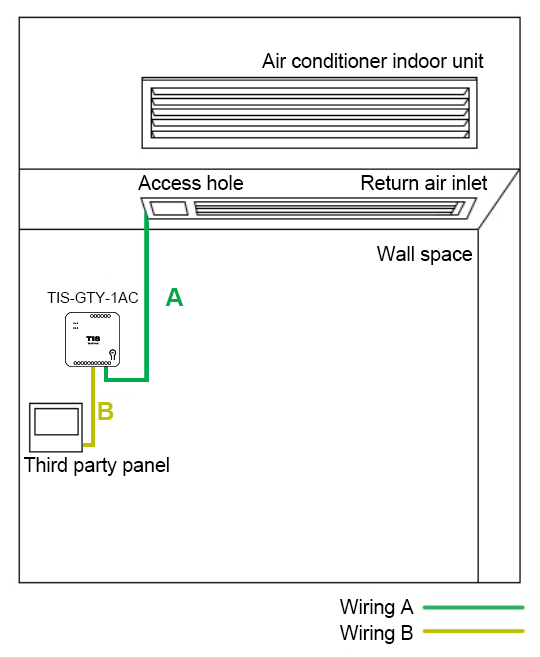

Option two

TIS-GTY-1AC is installed in the panel 86 bottom box

(Wiring diagram)
